D6.5 mini inductive sensor with cable type

D6.5 Mini-Shorter Inductive Proximity Sensor with cable

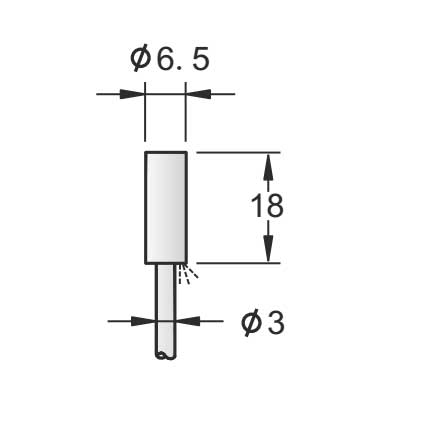

Size

D6.5 * 18mm

Mounting

shielded

Sensing Distance Sn（mm）

1mm / 2mm

Housing Material

Stainless steel

With or Without LED

with LED

Operating Voltage

10-30VDC

Ripple

<10%

No Load Current

<10mA

Max.Load Current

150mA

Leakage Current

<0.01mA

Voltage Drop

<1.5V

Switching Frequency

2KHz / 1KHz

2KHz

Response Time

  0.1ms/0.1ms

0.1ms

Switching Hysteresis

<15%(Sr)

Repeat Accuracy

<3.0%(Sr)

Protection Category

IP67

Operating Temperature

-25°C- +70°C

Temperature Drift

<10%(Sr)

Short Circuit Protection

YES

Overload Trip Point

180mA

EMC

RFI>3V/M / EFT>1KV  /  ESD>4KV(contact)

Shock/Vibration

IEC 60947-5-2,Part7.4.1  /  IEC 60947-5-2,Part7.4.2

Material Active Face

PBT

Connection

D3 3*0.15 PVC 2M

DC 3 wire 10-30V NPN NO

I1D6.5*NO-18C

DC 3 wire 10-30V NPN NC

I1D6.5*NC-18C

DC 3 wire 10-30V PNP NO

I1D6.5*PO-18C

DC 3 wire 10-30V PNP NC

I1D6.5*PC-18C
