Series : Mini-Shorter Inductive proximity sensor

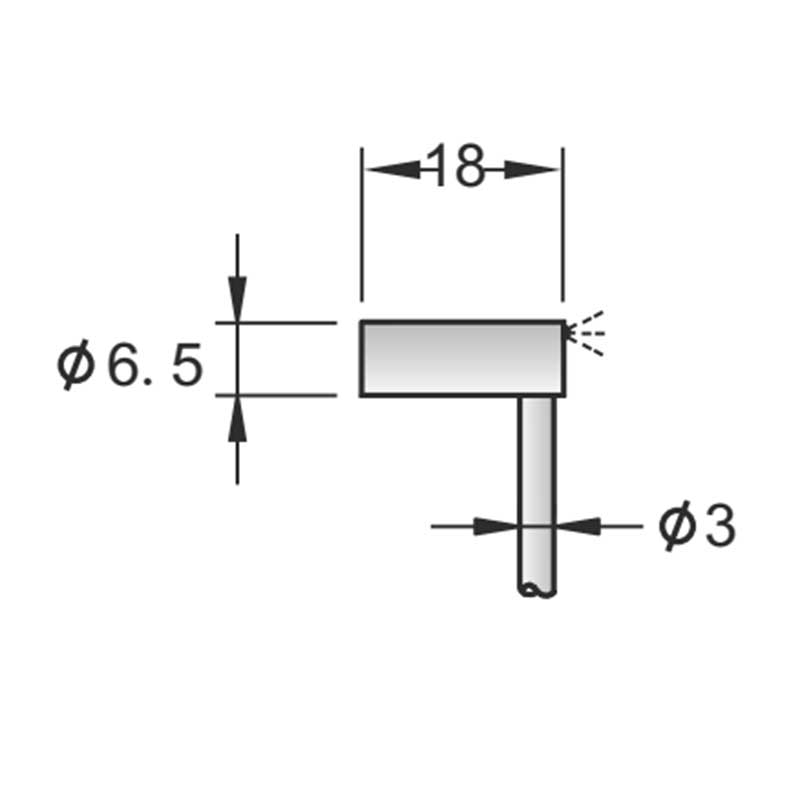

Size : D6.5*18mm Y Type
Housing Material: stainless steel
Mounting: shielded/Non-shielded
Sensing Distance Sn(mm): 1mm/2mm
Operating Voltage: DC 10-30V
Output function: NPN/PNP NO/NC
connection: 2M PVC cable
D6.5 Y type Mini-Shorter Inductive Proximity Sensor with cable |
|
Size |
D6.5 * 18mmY type |
Mounting |
shielded |
Sensing Distance Sn(mm) |
1mm / 2mm |
Housing Material |
Stainless steel |
With or Without LED |
with LED |
Operating Voltage |
10-30VDC |
Ripple |
<10% |
No Load Current |
<10mA |
Max.Load Current |
150mA |
Leakage Current |
<0.01mA |
Voltage Drop |
<1.5V |
Switching Frequency |
2KHz / 1KHz |
Response Time |
0.1ms/0.1ms |
Switching Hysteresis |
<15%(Sr) |
Repeat Accuracy |
<3.0%(Sr) |
Protection Category |
IP67 |
Operating Temperature |
-25°C- +70°C |
Temperature Drift |
<10%(Sr) |
Short Circuit Protection |
YES |
Overload Trip Point |
180mA |
EMC |
RFI>3V/M / EFT>1KV / ESD>4KV(contact) |
Shock/Vibration |
IEC 60947-5-2,Part7.4.1 / IEC 60947-5-2,Part7.4.2 |
Material Active Face |
PBT |
Connection |
D3 3*0.15 PVC 2M |
DC 3 wire 10-30V NPN NO |
I1D6.5*NO-18C-Y |
DC 3 wire 10-30V NPN NC |
I1D6.5*NC-18C-Y |
DC 3 wire 10-30V PNP NO |
I1D6.5*PO-18C-Y |
DC 3 wire 10-30V PNP NC |
I1D6.5*PC-18C-Y |
Key Features:
Applications:
The LUOSHIDA D6.5 Y Mini Inductive Sensor with Cable Type is an ideal choice for applications that demand precise and reliable detection. It is commonly used in:
